| Equipment model | Working cavity diameter (mm) | Pulp ore yield (m³/h) | Peak induced magnetic field (T) | Water pump power (kw) | Machine weight (t) | Overall dimension (mm) | ||
| long | wide | high | ||||||
| HPTD750-YS | 750 | 40-80 | 3.0 | 15 | 30 | 2900 | 2400 | 3100 |
| HPTD1000-YS | 1000 | 50-100 | 3.0 | 22 | 45 | 3200 | 2700 | 3300 |
| HPTD1200-YS | 1200 | 60-150 | 3.0 | 30 | 60 | 3600 | 3200 | 3500 |
| HPTD1500-YS | 1500 | 80-180 | 3.0 | 45 | 98 | 4200 | 3800 | 3500 |

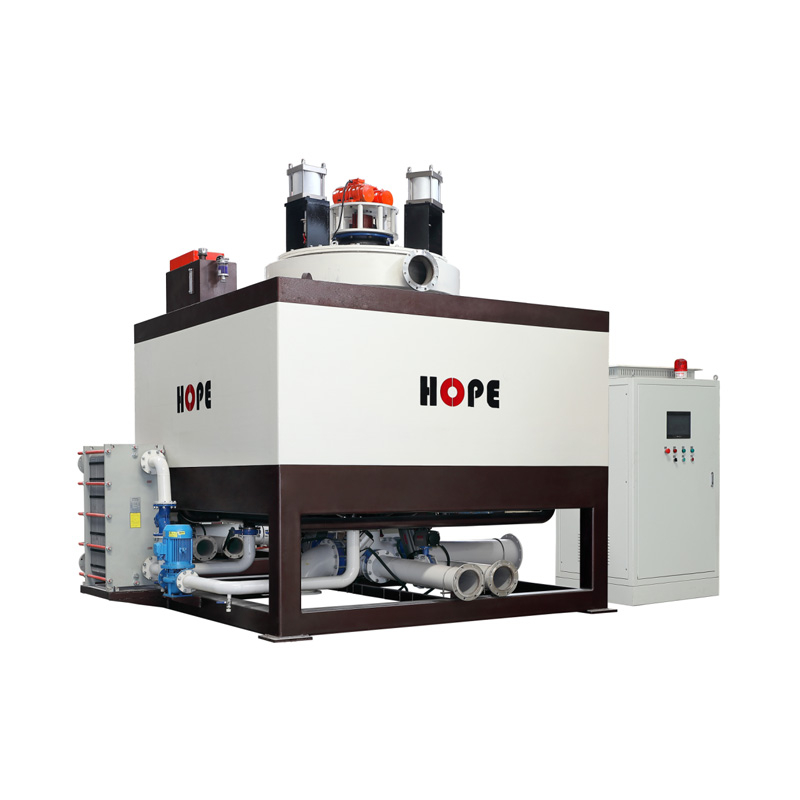

Device Description
(1) Suitable for non-metallic minerals (such as kaolin, feldspar, quartzite, nepheline, argillar, wolwolash, lithium limestone, etc.) purification of impurity;
(2) electromagnetic coil through insulation curing treatment, compact structure, safe and reliable, maintenance-free;
(3) Coil adopts oil and water composite cooling mode, fast heat dissipation, stable magnetic field, long service life. Cooling water recycling, energy saving and environmental protection;
(4) Unique cleaning system design, to ensure that the media each time cleaning thoroughly;
(5) The whole machine is fully automatic operation, with stable performance, high efficiency and energy saving, easy operation, simple maintenance and other advantages;
(6) Products can be customized according to user needs.
