1. It is suitable for ultra-fine slurry iron removal of positive and negative materials in the new energy field.

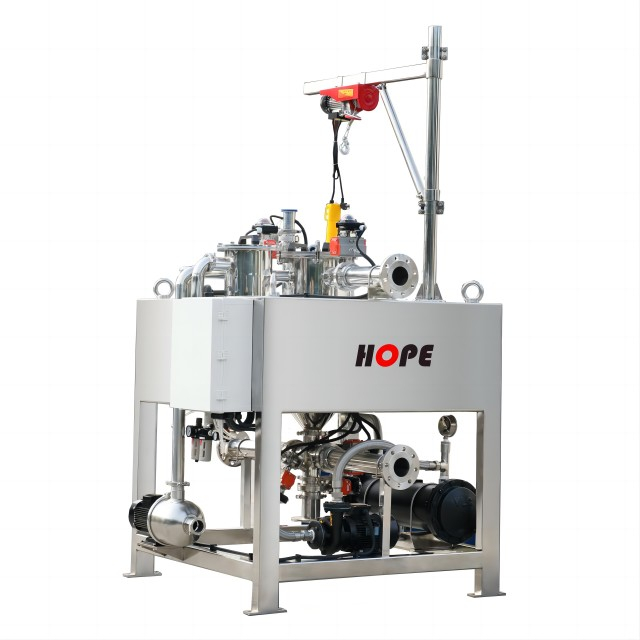

2. The equipment is the iron remover specially designed for lithium battery slurry material.lts internal structure is closely coordinated, the sorting chamber is equipped with stainless magnetic conductive working medium, which will converge with a high gradient magnetic field. The excitation coil adopts the 180 graded polyesterimide copper wire enamel with low temperature rise, the working magnetic field will be up to 20000Gs.Adopting 8K mirror polishing process for inner cavity, it is also equipped with an automatic cleaning system, the cleaning time will be set according to requirements.
3. Using stainless magnetic conductive working medium, the equipment produces a high-gradient magnetic field under the background magnetic field excitation. It has a strong adsorption effect for weak magnetic impurities, achieving a good iron removal effect.
4. The unique electromagnetic coil design has a good heat dissipation effect.The coil has a compact structure through insulation curing treatment. It is safe, reliable and maintenance-free with long use life. It is featured with safe and reliable, maintenance-free, long service life.
5. Excitatian coil cooling method uses full seal cooling oi for cooling. Besides, it uses oil and water double cooling technology. The heat produced by excitation coil will be cooled through oil, and then a large area heat exchanger and large flow oil pump will be used to cool the oil. Cooling oil has a high cycle speed and strong heat exchange capacity with low temperature rise, which ensures the stability of the background magnetic field.
6. The equipment has a unique cleaning system design, magnetic impurities are adsorbed on the working medium when the slurry flow through it. During cleaning period, the excitation coil loses power and the induced magnetic field which was generated on the medium disappears, it will be convenient for cleaning medium thoroughly and ensure an effective iron removal result.
7.The equipment working process is controlled by automated procedure with fully automatic operation. It has low operating and maintenance costs.
8. Equipment can be made according to user's needs.
Parameter
Model | Max. Background Magnetic Strength (Gs) | Cavity Diameter (mm) | Excitation Power (kW) | Weight (t) | Dimension(mm) | ||
L | W | H | |||||
HPXNJ25-35 | 3500 | 248 | 7 | 2.7 | 1100 | 1100 | 1980 |
HPXNJ25-50 | 5000 | 248 | 15 | 3.2 | 1100 | 1100 | 1980 |
HPXNJ30-35 | 3500 | 300 | 10 | 3.6 | 1250 | 1250 | 1980 |
HPXNU30-50 | 5000 | 300 | 21 | 4.1 | 1250 | 1250 | 1980 |
